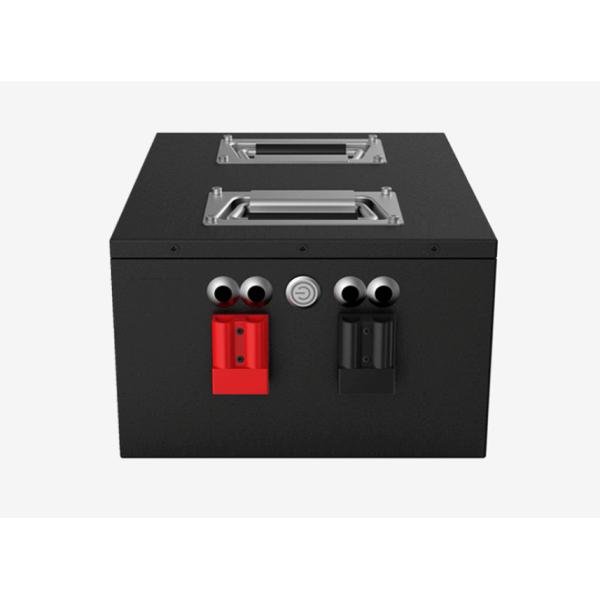

25.6V/60Ah AGV power lithium battery Parameter
Cell type: 26650/3.2V/3.5Ah
Battery specifications: 26650/8S18P/25.6V/60Ah
Nominal voltage: 25.6V
Nominal capacity: 60Ah
Charging voltage: 29.2V
Charging current: ≤30A
Discharge current: 20A
Instant discharge current: 60A
Discharge cut-off voltage: 20V
Finished internal resistance: ≤200mΩ
Product size: 304×243×152 (Max)
Battery weight: 15Kg
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 55 ℃
Storage temperature: -20 ~ 55 ℃
Temperature protection: 65℃±5℃
Battery case: cold-rolled sheet metal
Lithium protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, balance and so on
Application: Robot AGV RGV
Product characteristics
Shock-proof and dust-proof: cold-rolled sheet metal, surface spray treatment, internal filled with shock-proof structure, seismic and dust-proof.
The battery pack is safe, with a temperature probe, and the temperature exceeds the automatic start protection;
High cycle life of battery pack, in line with low carbon, energy saving, environmental protection value concept;
OEM Battery parameters
Product Model
| Model | Capacity | Battery type | Dimension(mm) | Weight | Shell |
| Thickness | Width | Lenghth | (±1kg) |
| 48V10Ah | 10Ah | NCM | 70 | 110 | 269 | 2.8kg | NO |
| 70 | 85 | 294 |
| 48V20Ah | 20Ah | NCM | 138 | 110 | 269 | 5.5kg | NO |
| 138 | 85 | 294 |
| 48V30Ah | 30Ah | NCM | 182 | 397 | 170 | 11.5kg | NO |
| 182 | 223 | 320 |
| 48V40Ah | 40Ah | LiFePO4 | 200 | 548 | 195 | 28kg | Stainless steel |
| 200 | 324 | 334 |
| 48V50Ah | 50Ah | LiFePO4 | 298 | 468 | 176 | 31kg | Stainless steel |
| 298 | 284 | 296 |
| 48V60Ah | 60Ah | LiFePO4 | 247 | 612 | 195 | 35kg | Stainless steel |
| 247 | 356 | 334 |
| 48V70Ah | 70Ah | LiFePO4 | 158 | 900 | 234 | 43kg | Stainless steel |
| 158 | 500 | 412 |
| 48V85Ah | 85Ah | LiFePO4 | 158 | 900 | 234 | 44kg | Stainless steel |
| 158 | 500 | 412 |
| 48V92Ah | 92Ah | LiFePO4 | 233 | 596 | 234 | 45kg | Stainless steel |
| 233 | 348 | 412 |
| 48V100Ah | 100Ah | LiFePO4 | 198 | 676 | 260 | 48kg | Stainless steel |
| 198 | 388 | 464 |
| 48V120Ah | 120Ah | LiFePO4 | 196 | 900 | 234 | 58kg | Stainless steel |
| 196 | 500 | 412 |
| 48V140Ah | 140Ah | LiFePO4 | 198 | 868 | 260 | 64kg | Stainless steel |
| 198 | 484 | 464 |
| 48V150Ah | 150Ah | LiFePO4 | 158 | 500 | 408 | 83kg | Stainless steel |
| 158 | 900 | 764 |
| 48V175Ah | 175Ah | LiFePO4 | 231 | 996 | 234 | 77kg | Stainless steel |
| 231 | 548 | 412 |
| 48V200Ah | 200Ah | LiFePO4 | 196 | 396 | 756 | 95kg | Stainless steel |
| 196 | 692 | 412 |
| 48V240Ah | 240Ah | LiFePO4 | 230 | 396 | 756 | 100kg | Stainless steel |
| 230 | 692 | 412 |
Remark:
1. An ultra-large-capacity lithium battery pack that can be customized to store up to 500 kilowatt hours of electricity;
2. Discharge current: 10A-400A, other current values can also be customized;
3. The handle for weighing less than 10kg is directly above. Handles above 10kg are in the width direction;
4. It can be equipped with RS485 or RS232 or CAN communication protocol, which shall be subject to the actual situation;
5. The above are only some models. If you have other sizes and requirements, please consult and ask for relevant plans.
Production Details
From the battery cell to the battery pack, CLF controls every production link in strict accordance with the ISO9001 standard, arranges quality inspectors to check the process details to ensure the safety of the battery, and presents the best products to every customer.
